Composite Ballast Panels & Handrail at a Railway Bridge

Evergrip engineered & fabricated a fibreglass composite structure incorporating fully GRP ballast panels & integral hand rail, to form a railway bridge parapet.

Application

Supply only of an engineered & fabricated fibreglass composite structure incorporating fully GRP ballast panels & integral hand rail, to form a railway bridge parapet.

Sector

Infrastructure - Rail Bridges

Product Types

Composite GRP Structure incorporating heavy duty Moulded GRP Panels & GRP Pultruded Sections

Summary

Renovations to this bridge were undertaken by a national civil engineering company and required the renewal of ballast retaining panels. We were approached with a design including heavy duty GRP panels (75mm thick) used in combination with pultruded GRP I-Beams to form the framework.

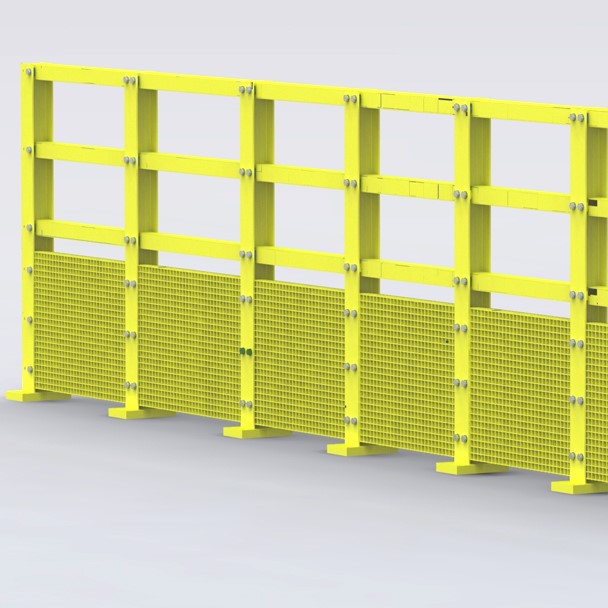

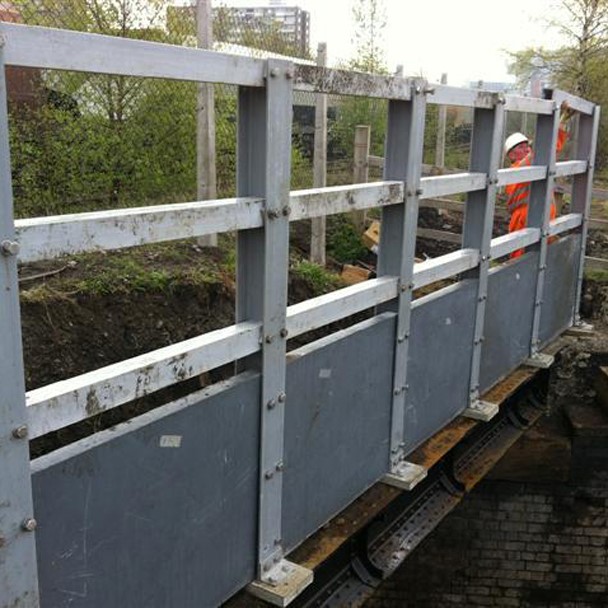

The design was modified, re-drawn and had engineering verification carried out on the composite elements.  The construction was fabricated in house, then dismantled and labelled for easy identification. Following haulage to site it was then easily assembled in situ by the main contractor.

For further details of this, or any other project, we would be delighted to hear from you. Please call us on +44 (0)1757 212744 or email [email protected]
